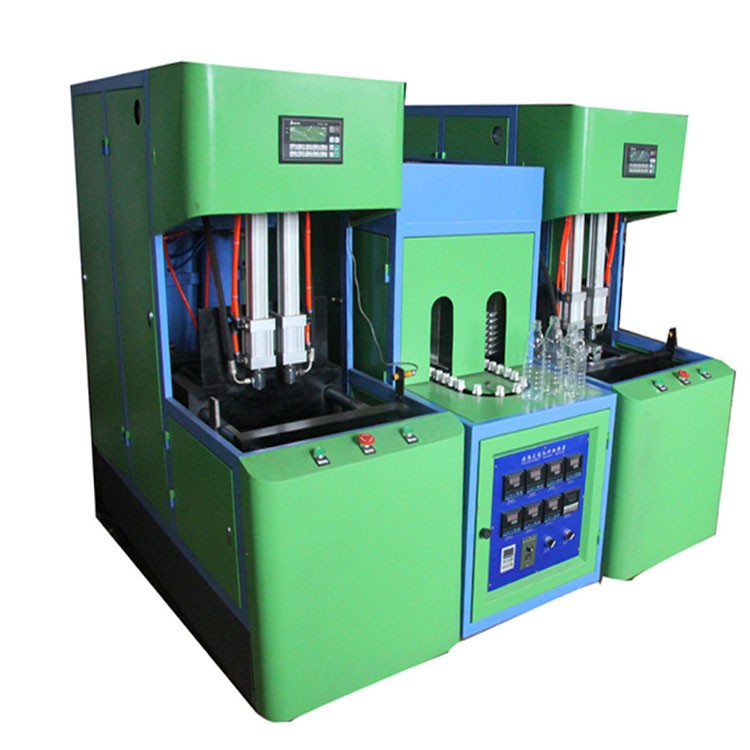

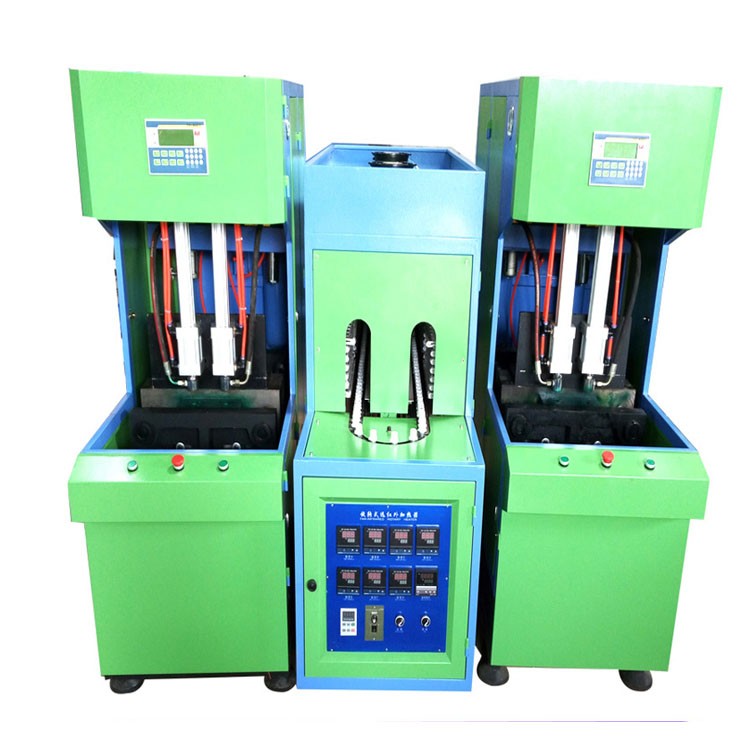

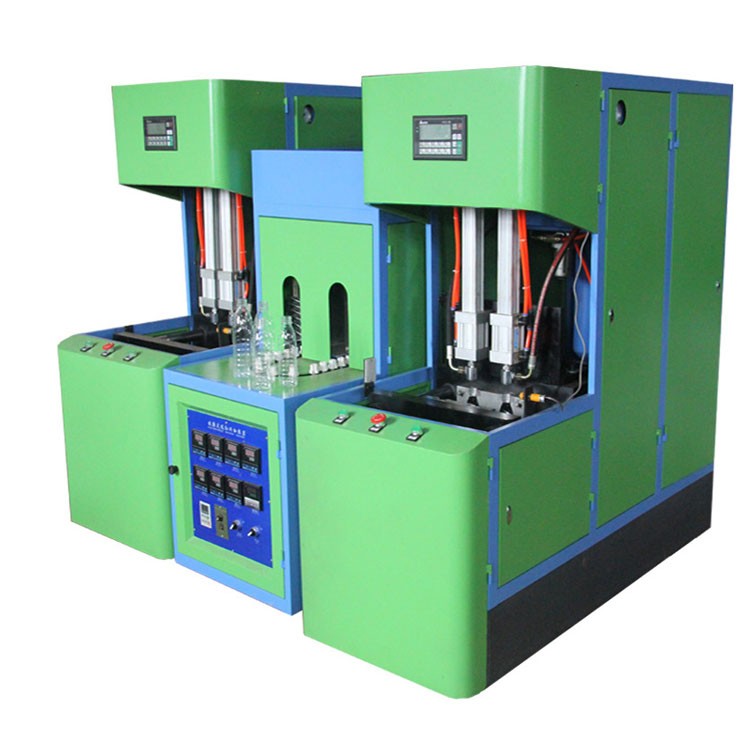

Taizhou Runrun machinery semi-automatic bottle blowing machine parameters

Model

RR-1000 Good Quality Cheapest Price 2 Cavties Hand Feeding Semi Automatic PET Blow Molding Machine , Plastic Bottle Making Machine

Theoretical output

1600-2000 pcs/h

Max. bottle volume

2 Liters

Finished bottle

Max. neck diameter

250 mm

Max. bottle height

380mm

Mold specifications

Cavity

28mm-95mm neck size with 2 cavity

Cavity

95mm-250mm neck size with 1 cavity

Mold thickness

110mm-400mm

Open stroke

420 mm

Electrical system

Power voltage

380v/3Phase/50HZ

Installation power

14kw

Actual power consumption

5-8 kw

Air source

Recommend air compressor

1.2m³/min 30Kg

Cooling water

Recommend water chiller

3HP

Blower size

Length*width*height/weight

1690*825*2100mm (MM)/650kg

Oven size

Length*width*height/weight

1700*690*1360mm/350kg
