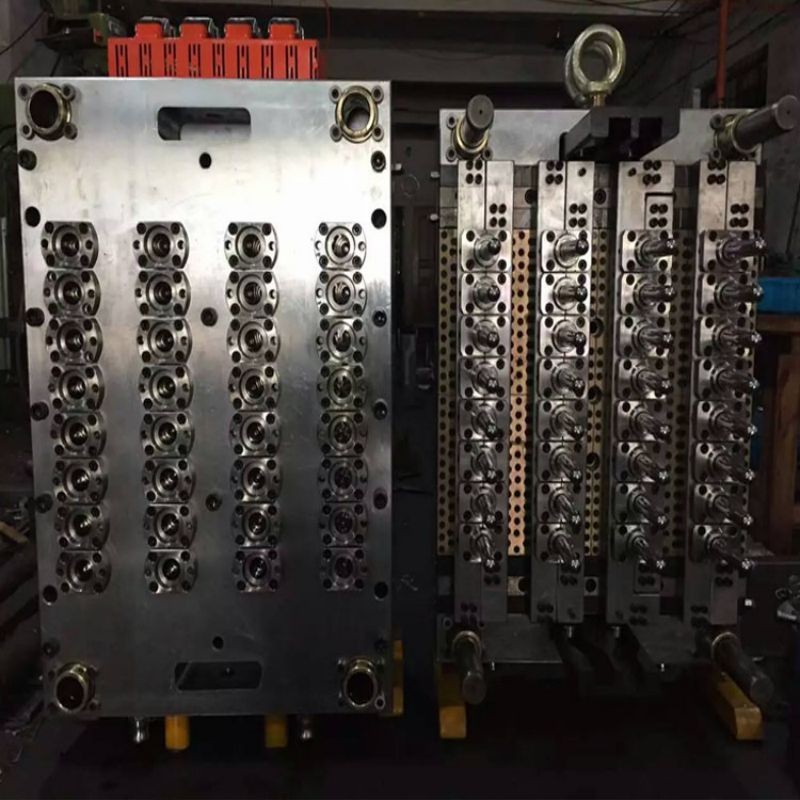

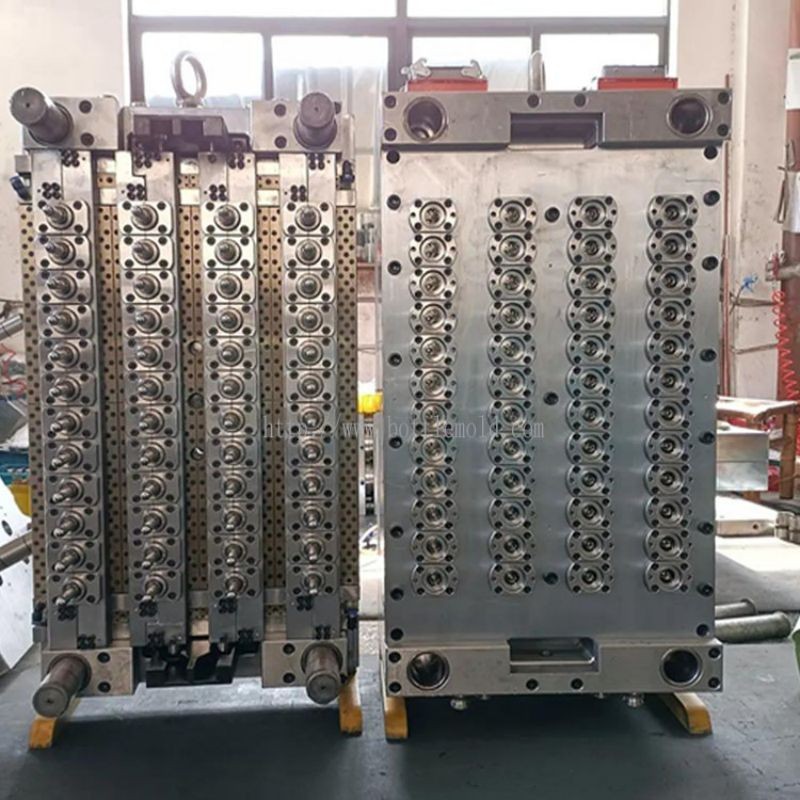

The Specification Of Hot Runner Preform Mould |
|
|
Cavities |
48cavities |
|
Mould frame material |
4Cr13 Stainless steel |
|
Core material |
S136 |
|
cavity material |
S136 |
|
Valve Pin Brand |
SKD61 (Japan) |
|
Heat insulation tip Brand |
DuPont（America） |
|
Heater ring brand |
Hotest（Germany） |
|
Runner structure |
|
|
enter runner |
one gate |
|
base runner |
4 points |
|
Sub channel |
48 points |
|
Mould information |
|
|
Mold outline size |
1065x580x530mm |
|
Mould weight |
1500KGS |
|
The mould features |
Self-lock,air seal, valve gate |
|
Cycle times |
20 seconds |
|
Mould power |
9 kw |
|
After-sales Service |
|
|
Mould life |
More than 3 million shot injection times |
|
Guarantee period |
One Year |
|
Payment terms |
30% deposit in advance |
|
70% balance before shipping |
|
|
Packaging requirement |
standard export packaging |
|
Product information |
Neck size:28mm |
|
Weight:20grams |
|
Eceng Pet Preform maker car glass water bottle Mold For Injection Molding Machine Price Chinese Factory
instructions
1: The number of preform cavity from 1 to 96.
2: The bottle preform is designed by computer simulation tensile test to improve the finished product rate of the blown bottle.
3: Adopt the world advanced two-level double-taper positioning technology, each cavity is self-locked independently, to ensure the concentricity of the mold.
4: Mold injection cavity and injection core are made of high quality preheating special die steel from the original Factory in Sweden.
5: Thread mouth according to international standard manufacturing, the material selection of imported nitriding, high hardness, long service life.
6: Advanced design of hot runner, uniform heating temperature, improve the quality of plastic products.
7: no shear gate, reduce the labor intensity of workers.
8: Mold life is guaranteed to be more than 3 million mold time
